U.S.Panama chocks

  • Application

The U.S. Panama chocks are widely used for different vessels such as container vessel, oil tankers, bulk carriers, tug, dry cargo vessels etc.

  • Installation

Panama Chocks can be either mounted directly onto or into the hull, or alternatively can come supplied with a base plate to be bolted to a plinth.
Surface:high corrosion-resistance, Polished, Galvanized
Material:casting and carbon steel
Technics: precision Cast

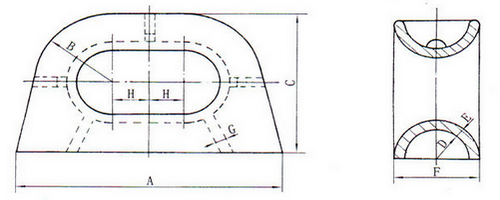

U.S panama chock

  • Specification
Size Model A
mm		 B
mm		 C
mm		 D
mm		 F
mm		 G
mm		 H
mm		 Weight
kg
6″x12″ S-1097 558 165 330 61 178 20 76 71
7″x14″ S-1098 610 187 374 68 196 22 89 92.5
8″x16″ S-1105 626 257 514 100 260 25 335 152
9″x18″ S-1106 762 235 470 83 242 28 397 180
10″x20″ S-1101 812 257 514 90 260 30 496 225

* We can customize the mooring chocks according to buyer’s drawing.
