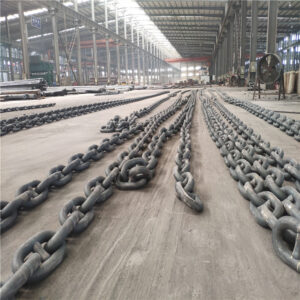

Marine anchor chain

  • Description

Our company can supply high quality marine anchor chain at competitive prices and on time delivery.

  1. Grade:U2 or U3 stud and studless anchor chain
  2. Size: 12.5mm up to 187mm
  3. Surface: black painted, hot dip galvanized.
  4. Packing: nude or as per customer’s requirement
  5. Qualification: NK, DNV, GL, LR, BV, ABS, CCS, KR, RINA etc.

anchor-chain     kenter shackleswiveljoining shackleanchor swivel shackle

  • Stud link chain is normally supplied in the grades U2 and U3 and in short lengths(27.5 mtrs long),which can be joined together using a Kenter shackle.
  • Originally studs were added to the chain to stiffen the links preventing them from severely deforming when overloaded. They prevent the chain from knotting up when twisted, thus avoiding problems when chain is retrieved with a windlass.
  • Most stud link chain is used on larger vessels and is rarely available in sizes under 12.5mm diameter.

We can also supply the accessories such as

  1. Kenter shackle(KS)
  2. Joining shackle(JS)
  3. Anchor swivel shackle(A.SW.S)
  4. End shackle(ES)
  5. Swivel
  6. D-shackle
  7. Chafe chain
  8. Buoy chain
  9. other fitting etc.
