Gravity Luffing Arm Type Davit

Description:

  • This device could launch the lifeboat by its own gravity to the surface of water, also, which could pour down the boat outboard while it is loss of electric power; while launching, the passengers could pull the remote control cable in the boat to launch or stop the life/rescue boat or raft. As well, the crews can operate it on the deck.
  • Meets with SOLAS 1974, the international life saving appliance rules LSA and IMO, MSC81(70) and other regulatory requirements.
  • Suitable for totally enclosed lifeboat/rescue boat.

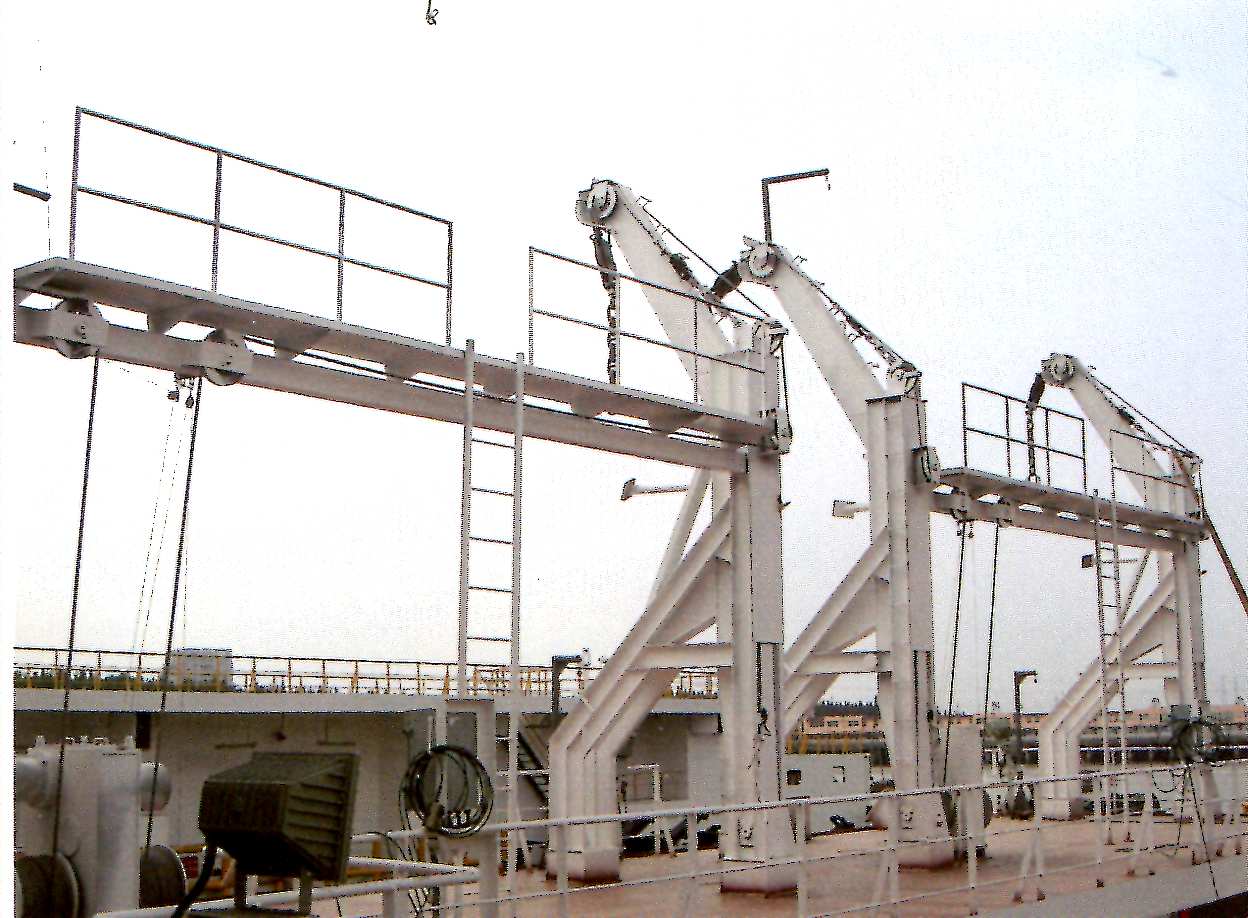

gravity luffing type lifeboat davit             gravity luffing arm type davit

Specifications:
Model Max.working load
(KN)		 Hoisting load (KN) Max. Width
(mm)		 Max. Height
(mm) 		Total weight
kg
25KN 25 14.5 2590 5100 2820
40KN 40 17 2800 5200 3492
50KN 50 30.5 2800 5200 4300
50KN 50 35 2550 6500 3200
70KN 70 35 3150 6200 4730
85KN 85 38 3430 6600 5025
120KN 120 60 4150 8200 6500
170KN 170 70 4430 9090 9438
