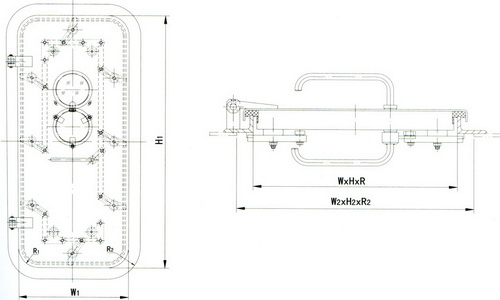

Class A-60 Weathertight Steel Door With Side Scuttle
- Application
Used on outside of wall and for the passage way of Class A division in fire protection area,and also for storage of provision.
- Specification
| No. | Type | Norminal size mm WxHxR100 |
Door leaf size mm W1xH1xR129 |
Opening size of wall mm W2xH2xR150 |
Weight kg |
| 1 | 1460 | 1400×600 | 1458×658 | 1500×700 | 217.8 |
| 2 | 1560 | 1500×600 | 1558×658 | 1600×700 | 230.7 |
| 3 | 1660 | 1600×600 | 1658×658 | 1700×700 | 243 |
| 4 | 1670 | 1600×700 | 1658×758 | 1700×800 | 257.4 |
| 5 | 1680 | 1600×800 | 1658×858 | 1700×900 | 271.7 |
| 6 | 1690 | 1600×900 | 1658×958 | 1700×1000 | 290.5 |
| 7 | 1890 | 1800×900 | 1858×958 | 1900×1000 | 311.7 |
