Class A60 Gastight Fireproof Door
- Application
This A60 fireproof door satisfies gastight requirements.
Passed the fire test held by Shanghai Far East Fire Testing Center with the test No. FT10163.

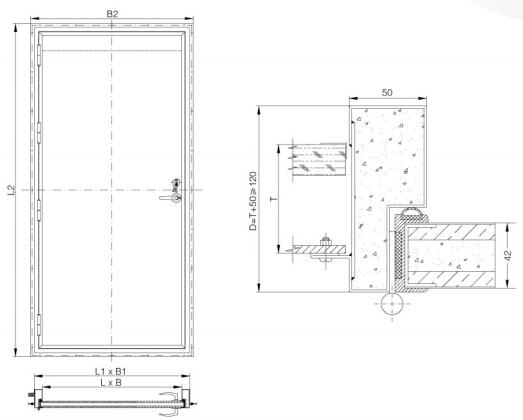

- Specification
| Nominal size mm BxL |
Cutout in steel wall mm B1xL1 |
External size mm B2xL2 |
Leaf thickness mm |
Lining thickness mm T |
Frame thickness mm D |
| 500×1200 | 605×1305 | 650×1350 | 42 | up to buyer’s choise | T+50≥120 |
| 550×1300 | 655×1405 | 700×1450 | 42 | up to buyer’s choise | T+50≥120 |
| 600×1400 | 705×1505 | 750×1550 | 42 | up to buyer’s choise | T+50≥120 |
| 650×1500 | 755×1605 | 800×1650 | 42 | up to buyer’s choise | T+50≥120 |
| 700×1600 | 805×1705 | 850×1750 | 42 | up to buyer’s choise | T+50≥120 |
| 750×1700 | 855×1805 | 900×1850 | 42 | up to buyer’s choise | T+50≥120 |
| 800×1800 | 905×1905 | 950×1950 | 42 | up to buyer’s choise | T+50≥120 |
| 850×1900 | 955×2005 | 1000×2050 | 42 | up to buyer’s choise | T+50≥120 |
| 900×2000 | 1005×2105 | 1050×2150 | 42 | up to buyer’s choise | T+50≥120 |
