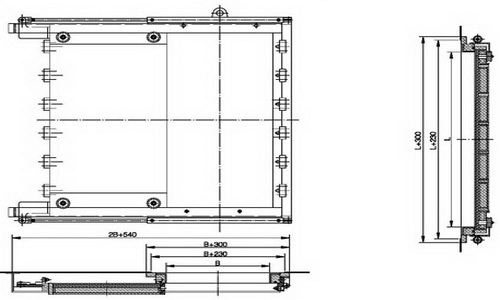

A60 hydraulic watertight sliding door
- Application
Suitable for watertight divisions under ship waterline.
And also used between engine room and shaft tunnel of special vessel with Class A60 fireproof requirement.
- Specification
| No. | Norminal size mm BxL |
Opening size of wall mm (B+230)x(L+230) |
External size mm (B+300)x(L+300) |
Opening direction |
| 1 | 500×1000 | 730×1230 | 800×1300 | L,R |
| 2 | 600×1200 | 830×1430 | 900×1500 | L,R |
| 3 | 700×1400 | 930×1630 | 1000×1700 | L,R |
| 4 | 700×1600 | 930×1830 | 1000×1900 | L,R |
| 5 | 700×1800 | 930×2030 | 1000×2100 | L,R |
| 6 | 800×2000 | 1030×2230 | 1100×2300 | L,R |
