Rigging Hold Hatch Cover

  • Application

Used for rigging hatch on exposed deck and the product is made according to JISF2010-70.

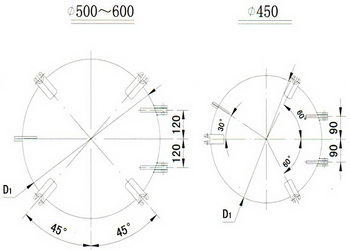

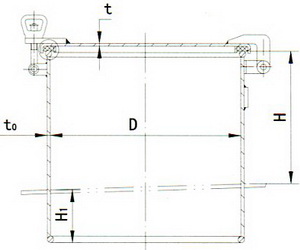

rigging hold hatch cover           section of rigging hold hatch cover

  • Specification
No. Nominal size
Φ		 D
mm 		D1
mm		 H
mm 		t0
mm		 t
mm		 Weight
kg
H=450		 Weight
kg
H=600
1 450 450 504 450
600		 11 4.5 85.3 103.9
2 500 500 556 450
600		 11 6 99.9 120.5
3 550 550 606 450
600		 11 6 108.7 131.3
4 600 600 656 450
600		 11 6 119.2 143.8
