Mooring Winch
We can supply high quality Marine Mooring Winch at competitive prices. The specifications includes electric mooring winch, hydrualic mooring winch and manual winch.

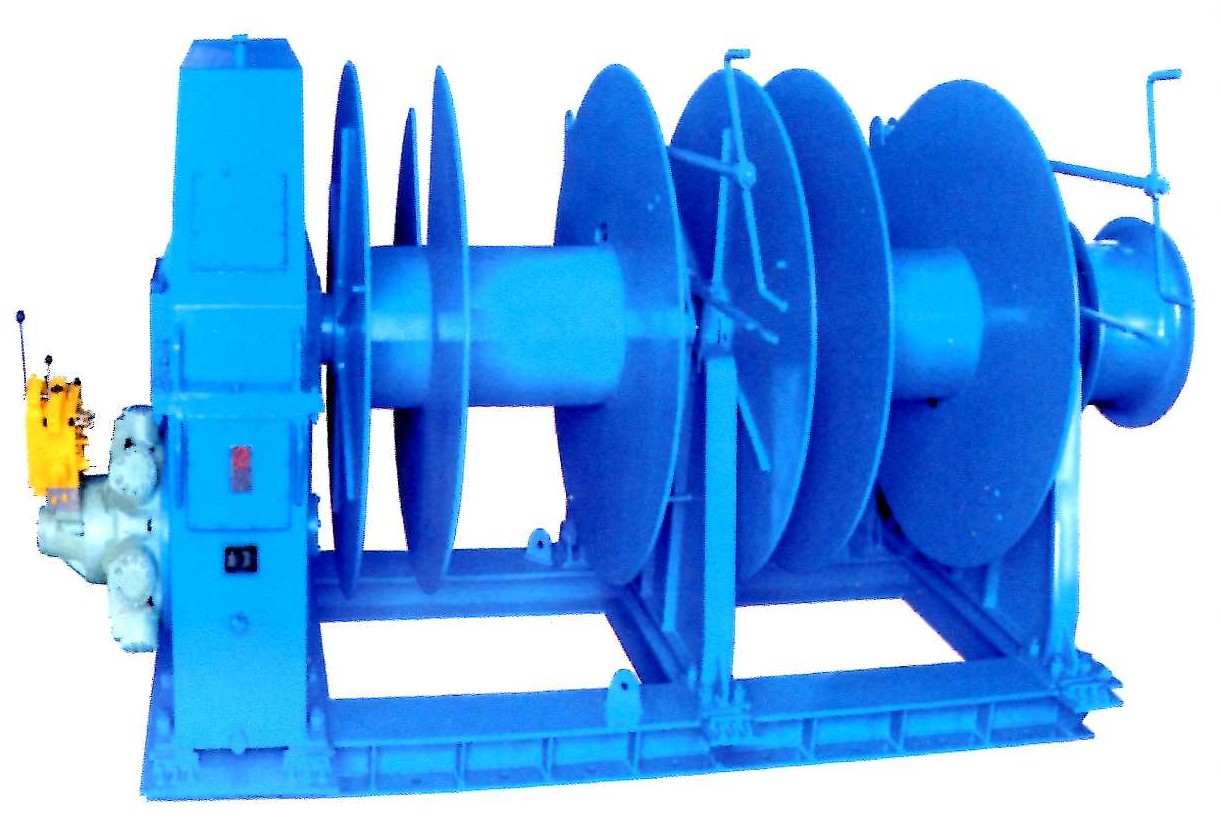

The electric mooring winch is composed of shoulder, warping end, electric motor,gear reducer, drum, shaft, clutch, brake apparatus, load weighting device ( if required ).

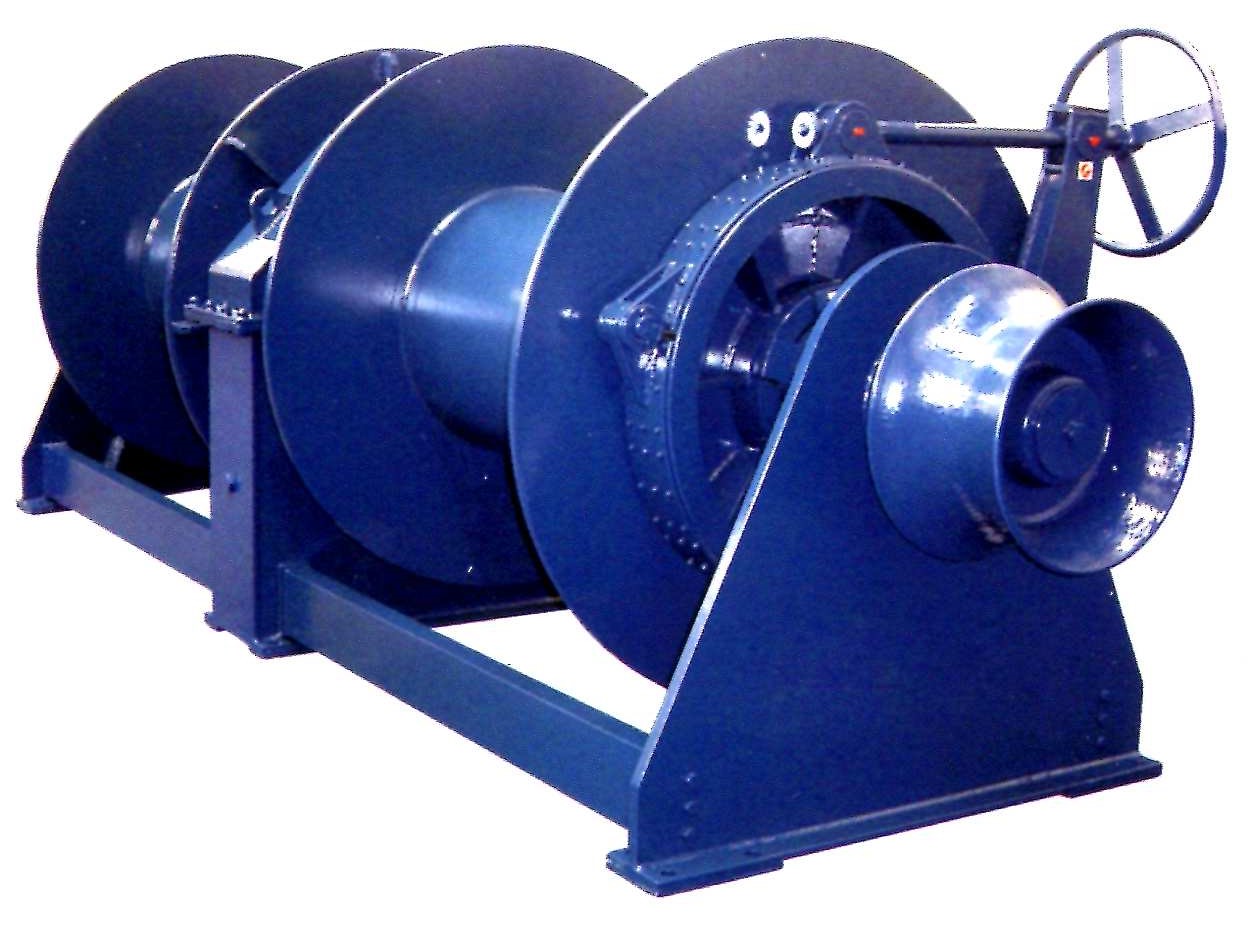

hydraulic mooring winch mainly consists of hydraulic motor, planetary gearbox, band brake, clutch, drum, warping head (optional), valve block with braking and overload protection function. Due to fitted with valve block, the design of HPU can be simplified, and reliability of drives can be improved. The winch could have constant tension function upon request.
| Hawser drum Load(kn) |
Hawser drum Speed (m/min) |
Hawser drum Rope size (mm x m) |
Motor Hydraulic type (kw) |
Motor Electric type (kw) |
| 10 | 15 | 40×150 | 5.5 | 4.3/1.7 |
| 20 | 15 | 45×150 | 11 | 8.5/3.5 |
| 30 | 15 | 45×180 | 18.5 | 11/11/7.5 |
| 40 | 15 | 48×180 | 18.5 | 16/16/11 |
| 50 | 15 | 48×200 | 22 | 22/22/16 |
| 60 | 15 | 52×190 | 30 | 22/22/16 |
| 70 | 15 | 60×200 | 30 | 30/30/22 |
| 80 | 15 | 65×200 | 37 | 30/30/22 |
| 100 | 15 | 65×200 | 45 | 45/45/30 |
| 125 | 15 | 72×210 | 55 | 45/45/30 |
| 150 | 15 | 80×220 | 75 | 60/60/45 |
| 160 | 15 | 80×220 | 75 | 60/60/45 |
| 200 | 15 | 90×220 | 90 | 75/75/36 |
| 250 | 12 | 90×220 | 110 | 75/75/36 |
