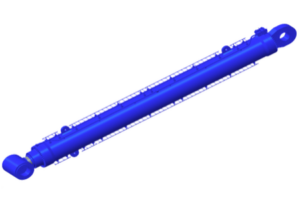

Luffing Cylinder
Summary: We could provide you:
- Luffing cylinder

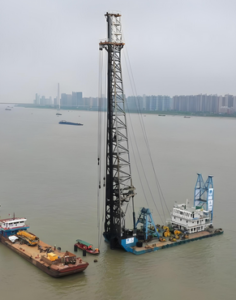

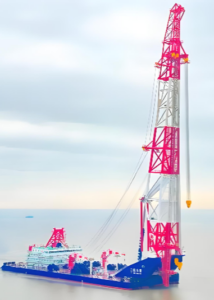

- Luffing cylinder can be used as lifting equipment and is also suitable for offshore pile driving in marine engineering, making it an essential device for construction pile driving.
- Can be customized according to customer requirements.
Function: Enables boom luffing motion for precise angle adjustment during lifting or pile driving operations and supports heavy loads ensuring structural stability and operational safety.
Specification:
- Cylinder diameter up to 1600mm
- Rod diameter up to 1120mm
- Stroke up to 21000mm
- Thrust: 5000T
Series Advantage:
- Customized design, high-strength materials, and specialized heat treatment and welding processes ensure the hydraulic cylinder delivers exceptional fatigue durability under high pressure and heavy loads.
- Multiple surface corrosion protection solutions available: Ni/Cr plating, ceramic spraying, laser cladding, etc.
Integrated safety features: includes safety lock valve assemblies, ladders, and other auxiliary attachments
Wide operating temperature range: designed for -20°C to +80°C, with customization available for higher or lower temperature requirements - Reliability-driven structural design: Finite Element Analysis (FEA) is used to evaluate stress distribution and simulate dynamic operating conditions across all components of large-scale cylinders, ensuring robust and fail-safe performance
- Third-party certification support: inspection and certification services from recognized agencies (e.g., DNV, BV, CCS) can be provided
- Full customization capability: working pressure, dimensions, mounting configurations, and other parameters can be tailored to meet specific customer requirements
If you have any inquiry, please feel free to contact us and we are committed to provide best quotation and design for your kind perusal.
